Cov khoom tseem ceeb hauv peb cov kab

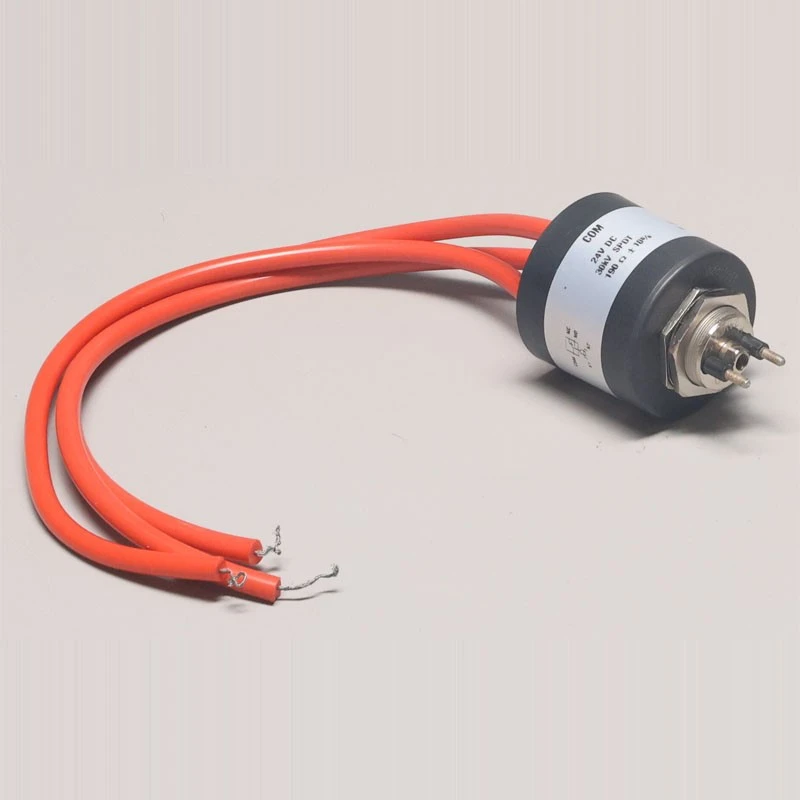

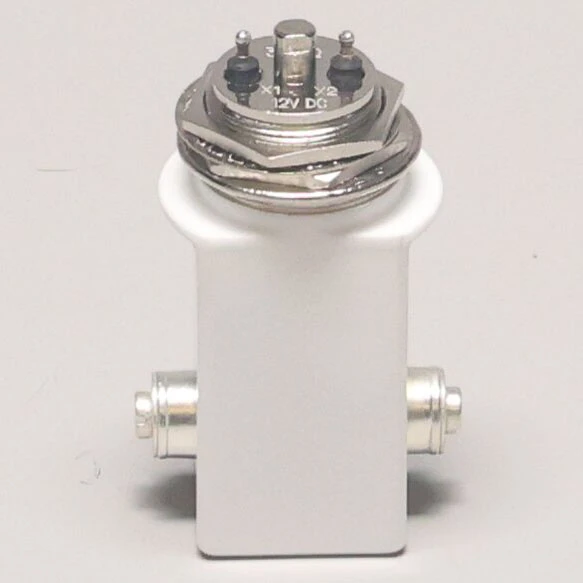

Lub Nqus Hluav Taws Xob Relay yog cov khoom tseem ceeb hauv peb cov kab hluav taws xob hloov hluav taws xob. Peb muaj peb tus kheej export daim ntawv tso cai. Peb cov khoom muag zoo rau txawv teb chaws. Peb muaj kev sib raug zoo nrog cov tuam txhab thoob ntiaj teb ntev -. Lub relay siv lub tshuab nqus tsev vacuum sealing. Nws cov kev sib cuag raug kaw hauv lub tshuab nqus tsev siab. Lub tshuab nqus tsev ua raws li qhov nruab nrab ntawm kev tua hluav taws. Qhov no muab cov khoom muaj peev xwm muaj peev xwm, muaj peev xwm tam sim no, thiab tsis tshua muaj kev sib cuag tsis zoo.
Zoo heev Arc Extinguishing Performance
Lub ntsiab kom zoo dua ntawm no relay yog nws arc extinguishing kev ua tau zoo. Lub arc kis tau yooj yim hauv lub tshuab nqus tsev. Qhov no txhais tau tias kev sib tiv tauj yog me me heev. Yog li ntawd, lub tshuab nqus tsev Relay muaj lub neej ua haujlwm ntev. Nws tuaj yeem ua haujlwm ntau lab. Lub tshuab nqus tsev kuj tsis muaj oxygen. Qhov no ua rau cov neeg sib cuag los ntawm oxidizing. Kev tiv thaiv kev tiv thaiv ntawm relay nyob ruaj khov nyob rau lub sijhawm. Peb cov khoom muaj ntawv pov thawj rau cov qauv tub rog. Peb tau yeej 45 lub teb chaws thiab lub xeev "Cov Khoom Zoo" khoom plig. Peb lub tuam txhab muaj 98 tus neeg ua haujlwm. Peb ua haujlwm tau zoo thiab tuaj yeem ua cov lus txiav txim nyuaj.
Versatile Power Control Solutions
Lub Nqus Hluav Taws Xob Relay yog siv rau hauv ntau daim ntawv thov kev tswj fais fab. Cov no suav nrog kev sib txuas lus, kev tshaj tawm, radar, lub zog, kev thauj mus los, metallurgy, thiab mining. Cov kev siv tshwj xeeb suav nrog cov kav hlau txais xov xov tooj cua sib txuas, cov khoom siv hluav taws xob, thiab cov roj teeb thaub qab. Lub relay kuj tseem siv rau hauv cov cuab yeej ntsuas xws li siab -voltage testers thiab cable testers. Hauv aerospace, peb cov khoom muab kev txhawb nqa rau kev tswj fais fab hauv cov cuab yeej tseem ceeb.
|
Parameter |
Tus nqi |
|
Hu rau daim ntawv |
SPST-NO / SPDT |
|
Rated Ua Haujlwm Voltage |
8kV - 15kV |
|
Max Nruam Tam Sim No |
12A - 50A |
|
Max tiv taus |
Tsawg dua lossis sib npaug rau 0.02Ω |
|
Rwb thaiv tsev Resistance |
Ntau dua lossis sib npaug rau 10000MΩ |
|
Ua Si Sijhawm |
Tsawg dua lossis sib npaug li 10ms - 20ms |
|
Sijhawm tso tawm |
Tsawg dua los yog sib npaug li 10ms |
|
Neeg kho tshuab lub neej |
Ntau dua lossis sib npaug li 1 lab lub voj voog |
|
Kev khiav hauj lwm qhov kub thiab txias |
-55℃~ +125 degree |
|
Shock Level |
Ntau dua lossis sib npaug li 30G's |
Peb tuaj yeem kho qhov relay no raws li koj xav tau. Qhov no suav nrog voltage, tam sim no, mounting, thiab xaim. Lub sijhawm ua piv txwv yog 40-60 hnub. Peb lub peev xwm tsim tau txhua hli yog 10,000 txog 15,000 units. Peb lees txais kev tshuaj xyuas thib peb.
